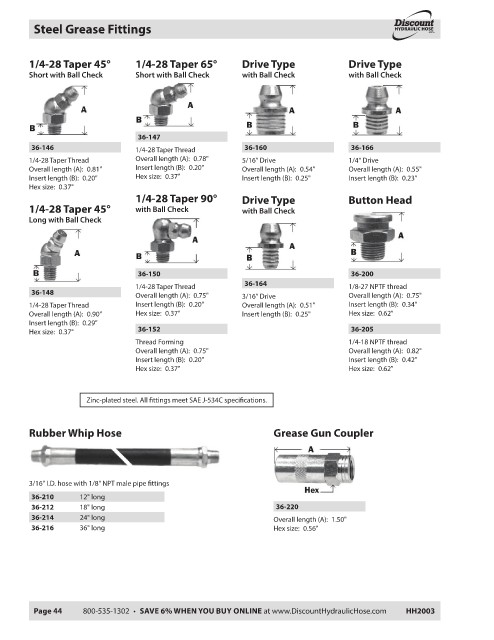

Page 46 - DHH Catalog

Steel Grease Fittings HYDRAULIC HOSE
.com ®

1/4-28 Taper 45° 1/4-28 Taper 65° Drive Type Drive Type
Short with Ball Check Short with Ball Check with Ball Check with Ball Check

36-147
36-146 1/4-28 Taper Thread 36-160 36-166
1/4-28 Taper Thread Overall length (A): 0.78" 5/16" Drive 1/4" Drive
Overall length (A): 0.81" Insert length (B): 0.20" Overall length (A): 0.54" Overall length (A): 0.55"
Insert length (B): 0.20" Hex size: 0.37" Insert length (B): 0.25" Insert length (B): 0.23"
Hex size: 0.37"
1/4-28 Taper 90° Drive Type Button Head
1/4-28 Taper 45° with Ball Check with Ball Check
Long with Ball Check

36-150 36-200
36-164
1/4-28 Taper Thread 1/8-27 NPTF thread
36-148
Overall length (A): 0.75" 3/16" Drive Overall length (A): 0.75"
1/4-28 Taper Thread Insert length (B): 0.20" Overall length (A): 0.51" Insert length (B): 0.34"
Overall length (A): 0.90" Hex size: 0.37" Insert length (B): 0.25" Hex size: 0.62"
Insert length (B): 0.29"
Hex size: 0.37" 36-152 36-205
Thread Forming 1/4-18 NPTF thread
Overall length (A): 0.75" Overall length (A): 0.82"
Insert length (B): 0.20" Insert length (B): 0.42"
Hex size: 0.37" Hex size: 0.62"

Zinc-plated steel. All fi ttings meet SAE J-534C specifi cations.

Rubber Whip Hose Grease Gun Coupler

3/16" I.D. hose with 1/8" NPT male pipe fi ttings
36-210 12" long
36-212 18" long 36-220
36-214 24" long Overall length (A): 1.50"
36-216 36" long Hex size: 0.56"
