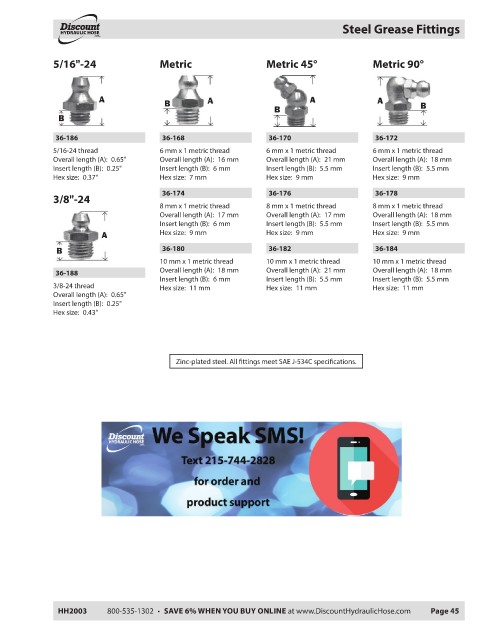

Steel Grease Fittings
HYDRAULIC HOSE
.com ®
5/16"-24 Metric Metric 45° Metric 90°
36-186 36-168 36-170 36-172
5/16-24 thread 6 mm x 1 metric thread 6 mm x 1 metric thread 6 mm x 1 metric thread
Overall length (A): 0.65" Overall length (A): 16 mm Overall length (A): 21 mm Overall length (A): 18 mm
Insert length (B): 0.25" Insert length (B): 6 mm Insert length (B): 5.5 mm Insert length (B): 5.5 mm
Hex size: 0.37" Hex size: 7 mm Hex size: 9 mm Hex size: 9 mm
36-174 36-176 36-178
3/8"-24
8 mm x 1 metric thread 8 mm x 1 metric thread 8 mm x 1 metric thread
Overall length (A): 17 mm Overall length (A): 17 mm Overall length (A): 18 mm
Insert length (B): 6 mm Insert length (B): 5.5 mm Insert length (B): 5.5 mm
Hex size: 9 mm Hex size: 9 mm Hex size: 9 mm
36-180 36-182 36-184
10 mm x 1 metric thread 10 mm x 1 metric thread 10 mm x 1 metric thread
36-188 Overall length (A): 18 mm Overall length (A): 21 mm Overall length (A): 18 mm
Insert length (B): 6 mm Insert length (B): 5.5 mm Insert length (B): 5.5 mm
3/8-24 thread Hex size: 11 mm Hex size: 11 mm Hex size: 11 mm
Overall length (A): 0.65"
Insert length (B): 0.25"
Hex size: 0.43"
Zinc-plated steel. All fi ttings meet SAE J-534C specifi cations.
