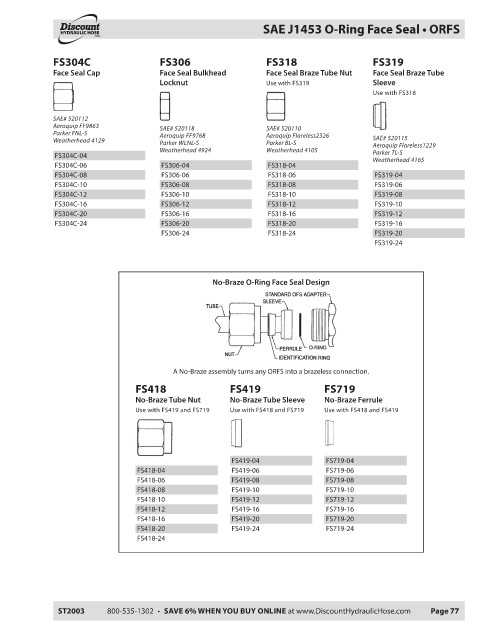

SAE J1453 O-Ring Face Seal • ORFS
HYDRAULIC HOSE
.com ®

FS304C FS306 FS318 FS319
Face Seal Cap Face Seal Bulkhead Face Seal Braze Tube Nut Face Seal Braze Tube
Locknut Use with FS319 Sleeve
Use with FS318

SAE# 520112
Aeroquip FF9863
SAE# 520118 SAE# 520110
Parker FNL-S
Aeroquip FF9768 Aeroquip Flareless2326
Weatherhead 4129 SAE# 520115
Parker WLNL-S Parker BL-S
Aeroquip Flareless1229
Weatherhead 4924 Weatherhead 4105 Parker TL-S
FS304C-04
Weatherhead 4165
FS304C-06 FS306-04 FS318-04
FS304C-08 FS306-06 FS318-06 FS319-04
FS304C-10 FS306-08 FS318-08 FS319-06
FS304C-12 FS306-10 FS318-10 FS319-08
FS304C-16 FS306-12 FS318-12 FS319-10
FS304C-20 FS306-16 FS318-16 FS319-12
FS304C-24 FS306-20 FS318-20 FS319-16
FS306-24 FS318-24 FS319-20
FS319-24

No-Braze O-Ring Face Seal Design

A No-Braze assembly turns any ORFS into a brazeless connection.

FS418 FS419 FS719
No-Braze Tube Nut No-Braze Tube Sleeve No-Braze Ferrule
Use with FS419 and FS719 Use with FS418 and FS719 Use with FS418 and FS419

FS419-04 FS719-04
FS418-04 FS419-06 FS719-06
FS418-06 FS419-08 FS719-08
FS418-08 FS419-10 FS719-10
FS418-10 FS419-12 FS719-12
FS418-12 FS419-16 FS719-16
FS418-16 FS419-20 FS719-20
FS418-20 FS419-24 FS719-24
FS418-24
