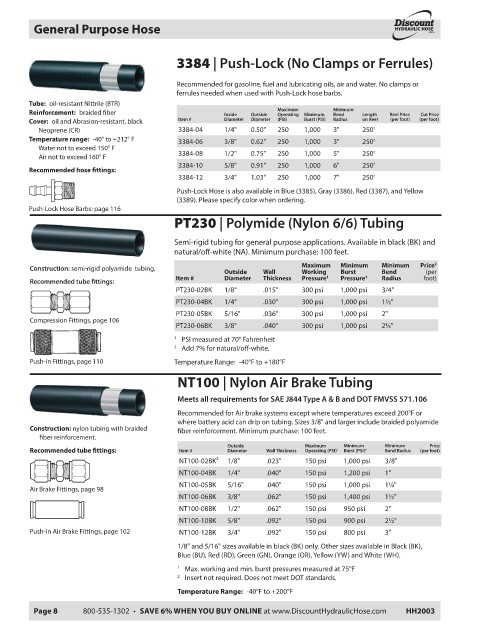

General Purpose Hose HYDRAULIC HOSE
.com ®

3384 | Push-Lock (No Clamps or Ferrules)

Recommended for gasoline, fuel and lubricating oils, air and water. No clamps or
ferrules needed when used with Push-Lock hose barbs.
Tube: oil-resistant Nittrile (BTR)
Maximum Minimum
Reinforcement: braided fi ber Inside Outside Operating Minimum Bend Length Reel Price Cut Price
Cover: oil and Abrasion-resistant, black Item # Diameter Diameter (PSI) Burst (PSI) Radius on Reel (per foot) (per foot)
Neoprene (CR) 3384-04 1/4" 0.50" 250 1,000 3" 250'
Temperature range: -40° to +212° F 3384-06 3/8" 0.62" 250 1,000 3" 250'
Water not to exceed 150° F
3384-08 1/2" 0.75" 250 1,000 5" 250'
Air not to exceed 160° F
3384-10 5/8" 0.91" 250 1,000 6" 250'
Recommended hose fi ttings:
3384-12 3/4" 1.03" 250 1,000 7" 250'
Push-Lock Hose is also available in Blue (3385), Gray (3386), Red (3387), and Yellow
(3389). Please specify color when ordering.
Push-Lock Hose Barbs: page 116
PT230 | Polymide (Nylon 6/6) Tubing

Semi-rigid tubing for general purpose applications. Available in black (BK) and
natural/off -white (NA). Minimum purchase: 100 feet.

Maximum Minimum Minimum Price 2
Construction: semi-rigid polyamide tubing.
Outside Wall Working Burst Bend (per
Item # Diameter Thickness Pressure 1 Pressure 1 Radius foot)
Recommended tube fi ttings:
PT230-02BK 1/8" .015" 300 psi 1,000 psi 3/4"
PT230-04BK 1/4" .030" 300 psi 1,000 psi 1½"
PT230-05BK 5/16" .036" 300 psi 1,000 psi 2"
Compression Fittings, page 106
PT230-06BK 3/8" .040" 300 psi 1,000 psi 2¼"
1 PSI measured at 70° Fahrenheit
2 Add 7% for natural/off -white.

Push-In Fittings, page 110 Temperature Range: -40°F to +180°F
NT100 | Nylon Air Brake Tubing

Meets all requirements for SAE J844 Type A & B and DOT FMVSS 571.106

Recommended for Air brake systems except where temperatures exceed 200°F or
where battery acid can drip on tubing. Sizes 3/8" and larger include braided polyamide
Construction: nylon tubing with braided fi ber reinforcement. Minimum purchase: 100 feet.
fi ber reinforcement.
Outside Maximum Minimum Minimum Price
Recommended tube fi ttings: Item # Diameter Wall Thickness Operating (PSI) 1 Burst (PSI) 1 Bend Radius (per foot)
NT100-02BK² 1/8" .023" 150 psi 1,000 psi 3/8"
NT100-04BK 1/4" .040" 150 psi 1,200 psi 1"
NT100-05BK 5/16" .040" 150 psi 1,000 psi 1¼"
Air Brake Fittings, page 98
NT100-06BK 3/8" .062" 150 psi 1,400 psi 1½"
NT100-08BK 1/2" .062" 150 psi 950 psi 2"
NT100-10BK 5/8" .092" 150 psi 900 psi 2½"
Push-In Air Brake Fittings, page 102 NT100-12BK 3/4" .092" 150 psi 800 psi 3"
1/8" and 5/16" sizes available in black (BK) only. Other sizes available in Black (BK),
Blue (BU), Red (RD), Green (GN), Orange (OR), Yellow (YW) and White (WH).

1 Max. working and min. burst pressures measured at 75°F
2 Insert not required. Does not meet DOT standards.
Temperature Range: -40°F to +200°F
