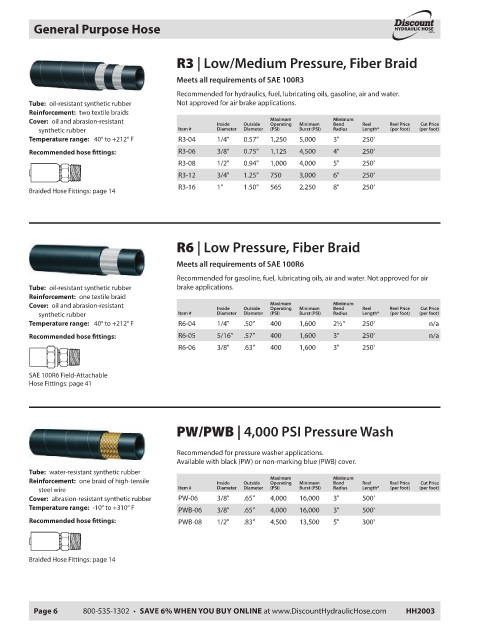

Page 8 - DHH Catalog

General Purpose Hose HYDRAULIC HOSE
.com ®

R3 | Low/Medium Pressure, Fiber Braid

Meets all requirements of SAE 100R3
Recommended for hydraulics, fuel, lubricating oils, gasoline, air and water.
Tube: oil-resistant synthetic rubber Not approved for air brake applications.
Reinforcement: two textile braids
Cover: oil and abrasion-resistant Maximum Minimum
Inside Outside Operating Minimum Bend Reel Reel Price Cut Price
synthetic rubber Item # Diameter Diameter (PSI) Burst (PSI) Radius Length* (per foot) (per foot)
Temperature range: 40° to +212° F R3-04 1/4" 0.57" 1,250 5,000 3" 250'
Recommended hose fi ttings: R3-06 3/8" 0.75" 1,125 4,500 4" 250'
R3-08 1/2" 0.94" 1,000 4,000 5" 250'
R3-12 3/4" 1.25" 750 3,000 6" 250'
R3-16 1" 1.50" 565 2,250 8" 250'
Braided Hose Fittings: page 14

R6 | Low Pressure, Fiber Braid

Meets all requirements of SAE 100R6

Recommended for gasoline, fuel, lubricating oils, air and water. Not approved for air
Tube: oil-resistant synthetic rubber brake applications.
Reinforcement: one textile braid
Cover: oil and abrasion-resistant Maximum Minimum
Inside Outside Operating Minimum Bend Reel Reel Price Cut Price
synthetic rubber Item # Diameter Diameter (PSI) Burst (PSI) Radius Length* (per foot) (per foot)
Temperature range: 40° to +212° F R6-04 1/4" .50" 400 1,600 2½" 250' n/a
Recommended hose fi ttings: R6-05 5/16" .57" 400 1,600 3" 250' n/a
R6-06 3/8" .63" 400 1,600 3" 250'

SAE 100R6 Field-Attachable
Hose Fittings: page 41

PW/PWB | 4,000 PSI Pressure Wash

Recommended for pressure washer applications.
Available with black (PW) or non-marking blue (PWB) cover.
Tube: water-resistant synthetic rubber
Maximum Minimum
Reinforcement: one braid of high-tensile Inside Outside Operating Minimum Bend Reel Reel Price Cut Price
steel wire Item # Diameter Diameter (PSI) Burst (PSI) Radius Length* (per foot) (per foot)
Cover: abrasion-resistant synthetic rubber PW-06 3/8" .65" 4,000 16,000 3" 500'
Temperature range: -10° to +310° F PWB-06 3/8" .65" 4,000 16,000 3" 500'
Recommended hose fi ttings: PWB-08 1/2" .83" 4,500 13,500 5" 300'

Braided Hose Fittings: page 14
