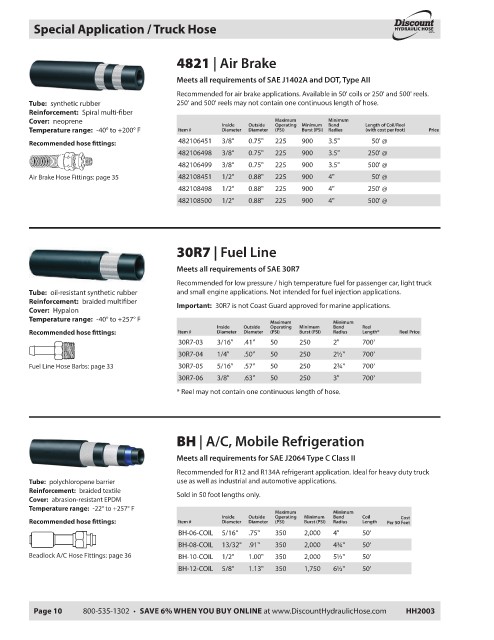

Page 12 - DHH Catalog

Special Application / Truck Hose HYDRAULIC HOSE
.com ®

4821 | Air Brake

Meets all requirements of SAE J1402A and DOT, Type AII
Recommended for air brake applications. Available in 50' coils or 250' and 500' reels.
Tube: synthetic rubber 250' and 500' reels may not contain one continuous length of hose.
Reinforcement: Spiral multi-fi ber
Cover: neoprene Maximum Minimum
Inside Outside Operating Minimum Bend Length of Coil/Reel
Temperature range: -40° to +200° F Item # Diameter Diameter (PSI) Burst (PSI) Radius (with cost per foot) Price
Recommended hose fi ttings: 482106451 3/8" 0.75" 225 900 3.5" 50' @
482106498 3/8" 0.75" 225 900 3.5" 250' @
482106499 3/8" 0.75" 225 900 3.5" 500' @
Air Brake Hose Fittings: page 35 482108451 1/2" 0.88" 225 900 4" 50' @
482108498 1/2" 0.88" 225 900 4" 250' @
482108500 1/2" 0.88" 225 900 4" 500' @

30R7 | Fuel Line

Meets all requirements of SAE 30R7
Recommended for low pressure / high temperature fuel for passenger car, light truck
Tube: oil-resistant synthetic rubber and small engine applications. Not intended for fuel injection applications.
Reinforcement: braided multifi ber
Important: 30R7 is not Coast Guard approved for marine applications.
Cover: Hypalon
Temperature range: -40° to +257° F
Maximum Minimum
Inside Outside Operating Minimum Bend Reel
Recommended hose fi ttings: Item # Diameter Diameter (PSI) Burst (PSI) Radius Length* Reel Price
30R7-03 3/16" .41" 50 250 2" 700'
30R7-04 1/4" .50" 50 250 2½" 700'
Fuel Line Hose Barbs: page 33 30R7-05 5/16" .57" 50 250 2¾" 700'
30R7-06 3/8" .63" 50 250 3" 700'
* Reel may not contain one continuous length of hose.

BH | A/C, Mobile Refrigeration

Meets all requirements for SAE J2064 Type C Class II

Recommended for R12 and R134A refrigerant application. Ideal for heavy duty truck
Tube: polychloropene barrier use as well as industrial and automotive applications.
Reinforcement: braided textile
Sold in 50 foot lengths only.
Cover: abrasion-resistant EPDM
Temperature range: -22° to +257° F
Maximum Minimum
Inside Outside Operating Minimum Bend Coil Cost
Recommended hose fi ttings: Item # Diameter Diameter (PSI) Burst (PSI) Radius Length Per 50 Feet
BH-06-COIL 5/16" .75" 350 2,000 4" 50'
BH-08-COIL 13/32" .91" 350 2,000 4¾" 50'
Beadlock A/C Hose Fittings: page 36 BH-10-COIL 1/2" 1.00" 350 2,000 5½" 50'
BH-12-COIL 5/8" 1.13" 350 1,750 6½" 50'
