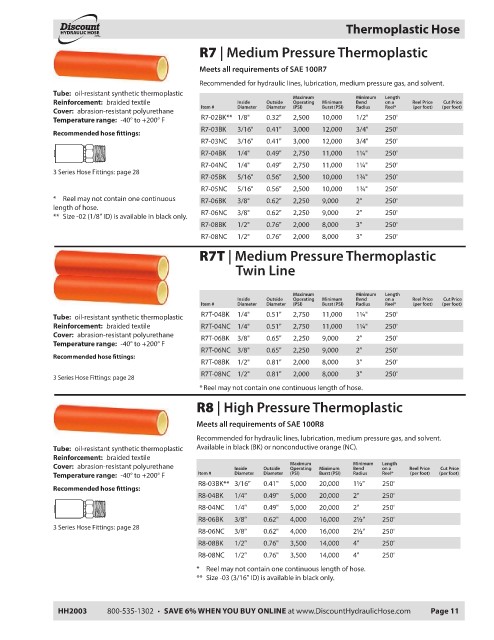

Page 13 - DHH Catalog

Thermoplastic Hose
HYDRAULIC HOSE
.com ®
R7 | Medium Pressure Thermoplastic

Meets all requirements of SAE 100R7
Recommended for hydraulic lines, lubrication, medium pressure gas, and solvent.
Tube: oil-resistant synthetic thermoplastic
Maximum Minimum Length
Reinforcement: braided textile Inside Outside Operating Minimum Bend on a Reel Price Cut Price
Item # Diameter Diameter (PSI) Burst (PSI) Radius Reel* (per foot) (per foot)
Cover: abrasion-resistant polyurethane
Temperature range: -40° to +200° F R7-02BK** 1/8" 0.32" 2,500 10,000 1/2" 250'
R7-03BK 3/16" 0.41" 3,000 12,000 3/4" 250'
Recommended hose fi ttings:
R7-03NC 3/16" 0.41" 3,000 12,000 3/4" 250'
R7-04BK 1/4" 0.49" 2,750 11,000 1¼" 250'
R7-04NC 1/4" 0.49" 2,750 11,000 1¼" 250'
3 Series Hose Fittings: page 28
R7-05BK 5/16" 0.56" 2,500 10,000 1¾" 250'
R7-05NC 5/16" 0.56" 2,500 10,000 1¾" 250'
* Reel may not contain one continuous R7-06BK 3/8" 0.62" 2,250 9,000 2" 250'
length of hose.
** Size -02 (1/8" ID) is available in black only. R7-06NC 3/8" 0.62" 2,250 9,000 2" 250'
R7-08BK 1/2" 0.76" 2,000 8,000 3" 250'
R7-08NC 1/2" 0.76" 2,000 8,000 3" 250'

R7T | Medium Pressure Thermoplastic
Twin Line

Maximum Minimum Length
Inside Outside Operating Minimum Bend on a Reel Price Cut Price
Item # Diameter Diameter (PSI) Burst (PSI) Radius Reel* (per foot) (per foot)
Tube: oil-resistant synthetic thermoplastic R7T-04BK 1/4" 0.51" 2,750 11,000 1¼" 250'
Reinforcement: braided textile R7T-04NC 1/4" 0.51" 2,750 11,000 1¼" 250'
Cover: abrasion-resistant polyurethane
R7T-06BK 3/8" 0.65" 2,250 9,000 2" 250'
Temperature range: -40° to +200° F
R7T-06NC 3/8" 0.65" 2,250 9,000 2" 250'
Recommended hose fi ttings:
R7T-08BK 1/2" 0.81" 2,000 8,000 3" 250'
R7T-08NC 1/2" 0.81" 2,000 8,000 3" 250'
3 Series Hose Fittings: page 28
* Reel may not contain one continuous length of hose.
R8 | High Pressure Thermoplastic

Meets all requirements of SAE 100R8
Recommended for hydraulic lines, lubrication, medium pressure gas, and solvent.
Tube: oil-resistant synthetic thermoplastic Available in black (BK) or nonconductive orange (NC).
Reinforcement: braided textile
Maximum Minimum Length
Cover: abrasion-resistant polyurethane Inside Outside Operating Minimum Bend on a Reel Price Cut Price
Temperature range: -40° to +200° F Item # Diameter Diameter (PSI) Burst (PSI) Radius Reel* (per foot) (per foot)
R8-03BK** 3/16" 0.41" 5,000 20,000 1½" 250'
Recommended hose fi ttings:
R8-04BK 1/4" 0.49" 5,000 20,000 2" 250'
R8-04NC 1/4" 0.49" 5,000 20,000 2" 250'
R8-06BK 3/8" 0.62" 4,000 16,000 2½" 250'
3 Series Hose Fittings: page 28
R8-06NC 3/8" 0.62" 4,000 16,000 2½" 250'
R8-08BK 1/2" 0.76" 3,500 14,000 4" 250'
R8-08NC 1/2" 0.76" 3,500 14,000 4" 250'

* Reel may not contain one continuous length of hose.
** Size -03 (3/16" ID) is available in black only.
