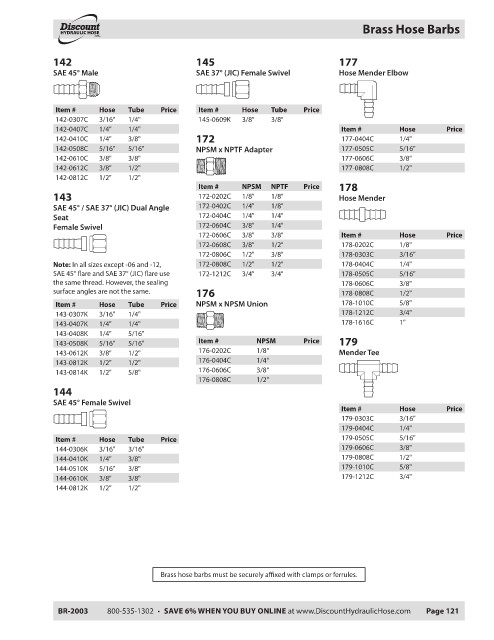

Brass Hose Barbs
HYDRAULIC HOSE
.com ®

142 145 177
SAE 45° Male SAE 37° (JIC) Female Swivel Hose Mender Elbow

Item # Hose Tube Price Item # Hose Tube Price
142-0307C 3/16" 1/4" 145-0609K 3/8" 3/8"
142-0407C 1/4" 1/4" Item # Hose Price
142-0410C 1/4" 3/8" 172 177-0404C 1/4"
142-0508C 5/16" 5/16" NPSM x NPTF Adapter 177-0505C 5/16"
142-0610C 3/8" 3/8" 177-0606C 3/8"
142-0612C 3/8" 1/2" 177-0808C 1/2"
142-0812C 1/2" 1/2"
Item # NPSM NPTF Price 178
143 172-0202C 1/8" 1/8" Hose Mender
SAE 45° / SAE 37° (JIC) Dual Angle 172-0402C 1/4" 1/8"
Seat 172-0404C 1/4" 1/4"
Female Swivel 172-0604C 3/8" 1/4"
172-0606C 3/8" 3/8" Item # Hose Price
172-0608C 3/8" 1/2" 178-0202C 1/8"
172-0806C 1/2" 3/8" 178-0303C 3/16"
Note: In all sizes except -06 and -12, 172-0808C 1/2" 1/2" 178-0404C 1/4"
SAE 45° fl are and SAE 37° (JIC) fl are use 172-1212C 3/4" 3/4" 178-0505C 5/16"
the same thread. However, the sealing 178-0606C 3/8"
surface angles are not the same. 176 178-0808C 1/2"
Item # Hose Tube Price NPSM x NPSM Union 178-1010C 5/8"
143-0307K 3/16" 1/4" 178-1212C 3/4"
143-0407K 1/4" 1/4" 178-1616C 1"
143-0408K 1/4" 5/16"
143-0508K 5/16" 5/16" Item # NPSM Price 179
143-0612K 3/8" 1/2" 176-0202C 1/8" Mender Tee
143-0812K 1/2" 1/2" 176-0404C 1/4"
143-0814K 1/2" 5/8" 176-0606C 3/8"
176-0808C 1/2"
144
SAE 45° Female Swivel
Item # Hose Price
179-0303C 3/16"
179-0404C 1/4"
Item # Hose Tube Price 179-0505C 5/16"
144-0306K 3/16" 3/16" 179-0606C 3/8"
144-0410K 1/4" 3/8" 179-0808C 1/2"
144-0510K 5/16" 3/8" 179-1010C 5/8"
144-0610K 3/8" 3/8" 179-1212C 3/4"
144-0812K 1/2" 1/2"

Brass hose barbs must be securely affi xed with clamps or ferrules.

BR-2003 800-535-1302 • SAVE 6% WHEN YOU BUY ONLINE at www.DiscountHydraulicHose.com Page 121
