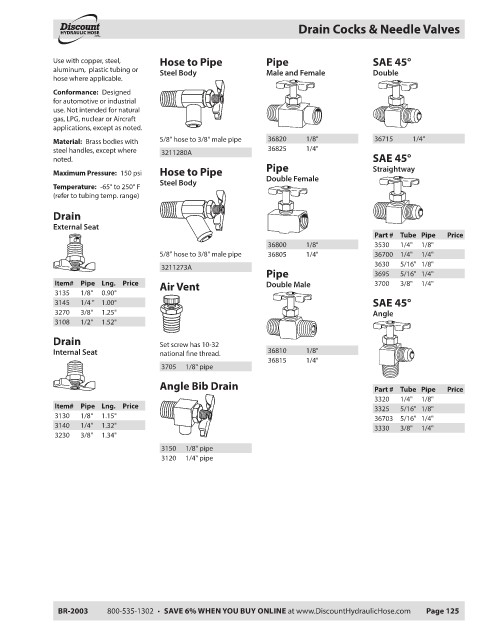

Page 127 - DHH Catalog

Drain Cocks & Needle Valves
HYDRAULIC HOSE
.com ®

Use with copper, steel, Hose to Pipe Pipe SAE 45°
aluminum, plastic tubing or
Steel Body Male and Female Double
hose where applicable.
Conformance: Designed
for automotive or industrial
use. Not intended for natural
gas, LPG, nuclear or Aircraft
applications, except as noted.

Material: Brass bodies with 5/8" hose to 3/8" male pipe 36820 1/8" 36715 1/4"
steel handles, except where 3211280A 36825 1/4"
noted. SAE 45°
Pipe Straightway
Maximum Pressure: 150 psi Hose to Pipe
Double Female
Steel Body
Temperature: -65° to 250° F
(refer to tubing temp. range)
Drain
External Seat
Part # Tube Pipe Price
36800 1/8" 3530 1/4" 1/8"
5/8" hose to 3/8" male pipe 36805 1/4" 36700 1/4" 1/4"
3630 5/16" 1/8"
3211273A
Pipe 3695 5/16" 1/4"
Item# Pipe Lng. Price Air Vent Double Male 3700 3/8" 1/4"
3135 1/8" 0.90"
3145 1/4 " 1.00" SAE 45°
3270 3/8" 1.25" Angle
3108 1/2" 1.52"

Drain Set screw has 10-32
Internal Seat national fi ne thread. 36810 1/8"
36815 1/4"
3705 1/8" pipe

Angle Bib Drain Part # Tube Pipe Price
3320 1/4" 1/8"
Item# Pipe Lng. Price
3325 5/16" 1/8"
3130 1/8" 1.15"
36703 5/16" 1/4"
3140 1/4" 1.32"
3330 3/8" 1/4"
3230 3/8" 1.34"
3150 1/8" pipe
3120 1/4" pipe

BR-2003 800-535-1302 • SAVE 6% WHEN YOU BUY ONLINE at www.DiscountHydraulicHose.com Page 125
