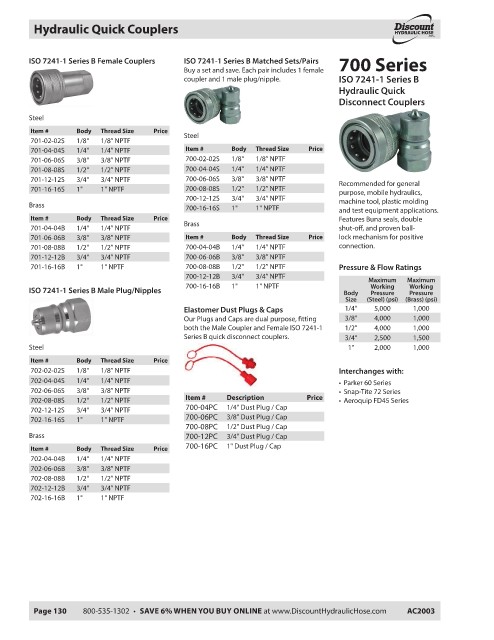

Page 132 - DHH Catalog

Hydraulic Quick Couplers HYDRAULIC HOSE
.com ®

Buy a set and save. Each pair includes 1 female 700 Series
ISO 7241-1 Series B Female Couplers ISO 7241-1 Series B Matched Sets/Pairs
coupler and 1 male plug/nipple. ISO 7241-1 Series B
Hydraulic Quick
Disconnect Couplers

Steel
Item # Body Thread Size Price
Steel
701-02-02S 1/8" 1/8" NPTF
701-04-04S 1/4" 1/4" NPTF Item # Body Thread Size Price
701-06-06S 3/8" 3/8" NPTF 700-02-02S 1/8" 1/8" NPTF
701-08-08S 1/2" 1/2" NPTF 700-04-04S 1/4" 1/4" NPTF
701-12-12S 3/4" 3/4" NPTF 700-06-06S 3/8" 3/8" NPTF Recommended for general
701-16-16S 1" 1" NPTF 700-08-08S 1/2" 1/2" NPTF purpose, mobile hydraulics,
700-12-12S 3/4" 3/4" NPTF machine tool, plastic molding
Brass 700-16-16S 1" 1" NPTF and test equipment applications.
Item # Body Thread Size Price Features Buna seals, double
Brass
701-04-04B 1/4" 1/4" NPTF shut-off , and proven ball-
701-06-06B 3/8" 3/8" NPTF Item # Body Thread Size Price lock mechanism for positive
701-08-08B 1/2" 1/2" NPTF 700-04-04B 1/4" 1/4" NPTF connection.
701-12-12B 3/4" 3/4" NPTF 700-06-06B 3/8" 3/8" NPTF
701-16-16B 1" 1" NPTF 700-08-08B 1/2" 1/2" NPTF Pressure & Flow Ratings
700-12-12B 3/4" 3/4" NPTF
Maximum Maximum
700-16-16B 1" 1" NPTF Working Working
ISO 7241-1 Series B Male Plug/Nipples Body Pressure Pressure
Size (Steel) (psi) (Brass) (psi)
Elastomer Dust Plugs & Caps 1/4" 5,000 1,000
Our Plugs and Caps are dual purpose, fi tting 3/8" 4,000 1,000
both the Male Coupler and Female ISO 7241-1 1/2" 4,000 1,000
Series B quick disconnect couplers. 3/4" 2,500 1,500
Steel 1" 2,000 1,000
Item # Body Thread Size Price
702-02-02S 1/8" 1/8" NPTF Interchanges with:
702-04-04S 1/4" 1/4" NPTF • Parker 60 Series
702-06-06S 3/8" 3/8" NPTF • Snap-Tite 72 Series
702-08-08S 1/2" 1/2" NPTF Item # Description Price • Aeroquip FD45 Series
702-12-12S 3/4" 3/4" NPTF 700-04PC 1/4" Dust Plug / Cap
702-16-16S 1" 1" NPTF 700-06PC 3/8" Dust Plug / Cap
700-08PC 1/2" Dust Plug / Cap
Brass 700-12PC 3/4" Dust Plug / Cap
700-16PC 1" Dust Plug / Cap
Item # Body Thread Size Price
702-04-04B 1/4" 1/4" NPTF
702-06-06B 3/8" 3/8" NPTF
702-08-08B 1/2" 1/2" NPTF
702-12-12B 3/4" 3/4" NPTF
702-16-16B 1" 1" NPTF
