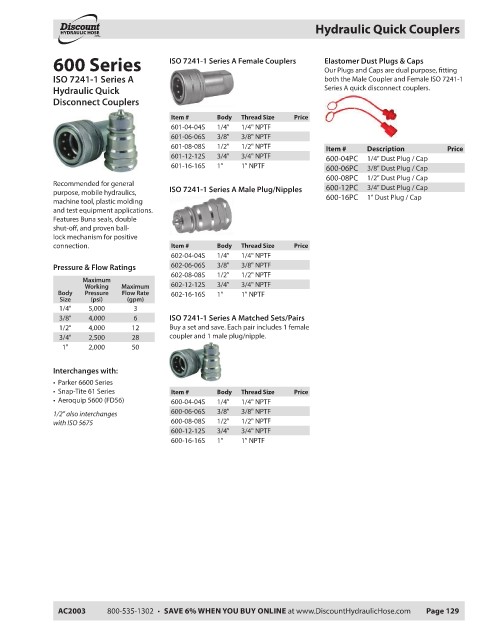

Page 131 - DHH Catalog

Hydraulic Quick Couplers
HYDRAULIC HOSE
.com ®

600 Series ISO 7241-1 Series A Female Couplers Elastomer Dust Plugs & Caps
Our Plugs and Caps are dual purpose, fi tting
ISO 7241-1 Series A both the Male Coupler and Female ISO 7241-1
Hydraulic Quick Series A quick disconnect couplers.
Disconnect Couplers

Item # Body Thread Size Price
601-04-04S 1/4" 1/4" NPTF
601-06-06S 3/8" 3/8" NPTF
601-08-08S 1/2" 1/2" NPTF Item # Description Price
601-12-12S 3/4" 3/4" NPTF 600-04PC 1/4" Dust Plug / Cap
601-16-16S 1" 1" NPTF 600-06PC 3/8" Dust Plug / Cap
600-08PC 1/2" Dust Plug / Cap
Recommended for general
ISO 7241-1 Series A Male Plug/Nipples 600-12PC 3/4" Dust Plug / Cap
purpose, mobile hydraulics,
600-16PC 1" Dust Plug / Cap
machine tool, plastic molding
and test equipment applications.
Features Buna seals, double
shut-off , and proven ball-
lock mechanism for positive
connection. Item # Body Thread Size Price
602-04-04S 1/4" 1/4" NPTF
Pressure & Flow Ratings 602-06-06S 3/8" 3/8" NPTF
602-08-08S 1/2" 1/2" NPTF
Maximum
Working Maximum 602-12-12S 3/4" 3/4" NPTF
Body Pressure Flow Rate 602-16-16S 1" 1" NPTF
Size (psi) (gpm)
1/4" 5,000 3
3/8" 4,000 6 ISO 7241-1 Series A Matched Sets/Pairs
1/2" 4,000 12 Buy a set and save. Each pair includes 1 female
3/4" 2,500 28 coupler and 1 male plug/nipple.
1" 2,000 50

Interchanges with:
• Parker 6600 Series
• Snap-Tite 61 Series Item # Body Thread Size Price
• Aeroquip 5600 (FD56) 600-04-04S 1/4" 1/4" NPTF
1/2" also interchanges 600-06-06S 3/8" 3/8" NPTF
with ISO 5675 600-08-08S 1/2" 1/2" NPTF
600-12-12S 3/4" 3/4" NPTF
600-16-16S 1" 1" NPTF

AC2003 800-535-1302 • SAVE 6% WHEN YOU BUY ONLINE at www.DiscountHydraulicHose.com Page 129
