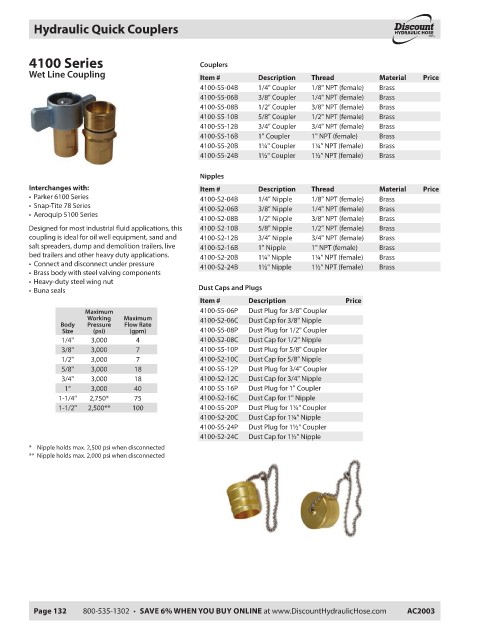

Hydraulic Quick Couplers HYDRAULIC HOSE
.com ®

4100 Series Couplers
Wet Line Coupling Item # Description Thread Material Price
4100-S5-04B 1/4" Coupler 1/8" NPT (female) Brass
4100-S5-06B 3/8" Coupler 1/4" NPT (female) Brass
4100-S5-08B 1/2" Coupler 3/8" NPT (female) Brass
4100-S5-10B 5/8" Coupler 1/2" NPT (female) Brass
4100-S5-12B 3/4" Coupler 3/4" NPT (female) Brass
4100-S5-16B 1" Coupler 1" NPT (female) Brass
4100-S5-20B 1¼" Coupler 1¼" NPT (female) Brass
4100-S5-24B 1½" Coupler 1½" NPT (female) Brass

Nipples
Interchanges with: Item # Description Thread Material Price
• Parker 6100 Series 4100-S2-04B 1/4" Nipple 1/8" NPT (female) Brass
• Snap-Tite 78 Series
4100-S2-06B 3/8" Nipple 1/4" NPT (female) Brass
• Aeroquip 5100 Series
4100-S2-08B 1/2" Nipple 3/8" NPT (female) Brass
Designed for most industrial fl uid applications, this 4100-S2-10B 5/8" Nipple 1/2" NPT (female) Brass
coupling is ideal for oil well equipment, sand and 4100-S2-12B 3/4" Nipple 3/4" NPT (female) Brass
salt spreaders, dump and demolition trailers, live 4100-S2-16B 1" Nipple 1" NPT (female) Brass
bed trailers and other heavy duty applications. 4100-S2-20B 1¼" Nipple 1¼" NPT (female) Brass
• Connect and disconnect under pressure
4100-S2-24B 1½" Nipple 1½" NPT (female) Brass
• Brass body with steel valving components
• Heavy-duty steel wing nut
• Buna seals Dust Caps and Plugs
Item # Description Price
Maximum 4100-S5-06P Dust Plug for 3/8" Coupler
Working Maximum 4100-S2-06C Dust Cap for 3/8" Nipple
Body Pressure Flow Rate
Size (psi) (gpm) 4100-S5-08P Dust Plug for 1/2" Coupler
1/4" 3,000 4 4100-S2-08C Dust Cap for 1/2" Nipple
3/8" 3,000 7 4100-S5-10P Dust Plug for 5/8" Coupler
1/2" 3,000 7 4100-S2-10C Dust Cap for 5/8" Nipple
5/8" 3,000 18 4100-S5-12P Dust Plug for 3/4" Coupler
3/4" 3,000 18 4100-S2-12C Dust Cap for 3/4" Nipple
1" 3,000 40 4100-S5-16P Dust Plug for 1" Coupler
1-1/4" 2,750* 75 4100-S2-16C Dust Cap for 1" Nipple
1-1/2" 2,500** 100 4100-S5-20P Dust Plug for 1¼" Coupler
4100-S2-20C Dust Cap for 1¼" Nipple
4100-S5-24P Dust Plug for 1½" Coupler
4100-S2-24C Dust Cap for 1½" Nipple
* Nipple holds max. 2,500 psi when disconnected
** Nipple holds max. 2,000 psi when disconnected
