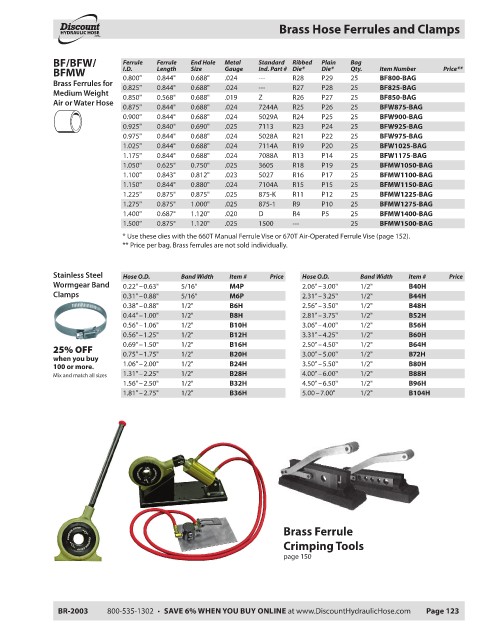

Brass Hose Ferrules and Clamps
HYDRAULIC HOSE
.com ®

BF/BFW/ Ferrule Ferrule End Hole Metal Standard Ribbed Plain Bag
BFMW I.D. Length Size Gauge Ind. Part # Die* Die* Qty. Item Number Price**
0.800" 0.844" 0.688" .024 --- R28 P29 25 BF800-BAG
Brass Ferrules for
0.825" 0.844" 0.688" .024 --- R27 P28 25 BF825-BAG
Medium Weight
0.850" 0.568" 0.688" .019 Z R26 P27 25 BF850-BAG
Air or Water Hose
0.875" 0.844" 0.688" .024 7244A R25 P26 25 BFW875-BAG
0.900" 0.844" 0.688" .024 5029A R24 P25 25 BFW900-BAG
0.925" 0.840" 0.690" .025 7113 R23 P24 25 BFW925-BAG
0.975" 0.844" 0.688" .024 5028A R21 P22 25 BFW975-BAG
1.025" 0.844" 0.688" .024 7114A R19 P20 25 BFW1025-BAG
1.175" 0.844" 0.688" .024 7088A R13 P14 25 BFW1175-BAG
1.050" 0.625" 0.750" .025 3605 R18 P19 25 BFMW1050-BAG
1.100" 0.843" 0.812" .023 5027 R16 P17 25 BFMW1100-BAG
1.150" 0.844" 0.880" .024 7104A R15 P15 25 BFMW1150-BAG
1.225" 0.875" 0.875" .025 875-K R11 P12 25 BFMW1225-BAG
1.275" 0.875" 1.000" .025 875-1 R9 P10 25 BFMW1275-BAG
1.400" 0.687" 1.120" .020 D R4 P5 25 BFMW1400-BAG
1.500" 0.875" 1.120" .025 1500 --- 25 BFMW1500-BAG
* Use these dies with the 660T Manual Ferrule Vise or 670T Air-Operated Ferrule Vise (page 152).
** Price per bag. Brass ferrules are not sold individually.

Stainless Steel Hose O.D. Band Width Item # Price Hose O.D. Band Width Item # Price
Wormgear Band 0.22" – 0.63" 5/16" M4P 2.06" – 3.00" 1/2" B40H
Clamps 0.31" – 0.88" 5/16" M6P 2.31" – 3.25" 1/2" B44H
0.38" – 0.88" 1/2" B6H 2.56" – 3.50" 1/2" B48H
0.44" – 1.00" 1/2" B8H 2.81" – 3.75" 1/2" B52H
0.56" – 1.06" 1/2" B10H 3.06" – 4.00" 1/2" B56H
0.56" – 1.25" 1/2" B12H 3.31" – 4.25" 1/2" B60H
0.69" – 1.50" 1/2" B16H 2.50" – 4.50" 1/2" B64H
25% OFF 0.75" – 1.75" 1/2" B20H 3.00" – 5.00" 1/2" B72H
when you buy
100 or more. 1.06" – 2.00" 1/2" B24H 3.50" – 5.50" 1/2" B80H
Mix and match all sizes 1.31" – 2.25" 1/2" B28H 4.00" – 6.00" 1/2" B88H
1.56" – 2.50" 1/2" B32H 4.50" – 6.50" 1/2" B96H
1.81" – 2.75" 1/2" B36H 5.00 – 7.00" 1/2" B104H

Brass Ferrule
Crimping Tools
page 150

BR-2003 800-535-1302 • SAVE 6% WHEN YOU BUY ONLINE at www.DiscountHydraulicHose.com Page 123
