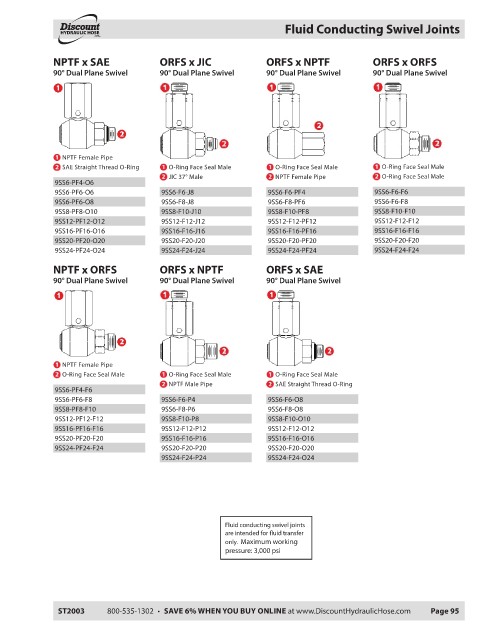

Page 97 - DHH Catalog

Fluid Conducting Swivel Joints
HYDRAULIC HOSE
.com ®

NPTF x SAE ORFS x JIC ORFS x NPTF ORFS x ORFS
90° Dual Plane Swivel 90° Dual Plane Swivel 90° Dual Plane Swivel 90° Dual Plane Swivel

NPTF Female Pipe
SAE Straight Thread O-Ring O-Ring Face Seal Male O-Ring Face Seal Male O-Ring Face Seal Male
JIC 37° Male NPTF Female Pipe O-Ring Face Seal Male
9SS6-PF4-O6
9SS6-PF6-O6 9SS6-F6-J8 9SS6-F6-PF4 9SS6-F6-F6
9SS6-PF6-O8 9SS6-F8-J8 9SS6-F8-PF6 9SS6-F6-F8
9SS8-PF8-O10 9SS8-F10-J10 9SS8-F10-PF8 9SS8-F10-F10
9SS12-PF12-O12 9SS12-F12-J12 9SS12-F12-PF12 9SS12-F12-F12
9SS16-PF16-O16 9SS16-F16-J16 9SS16-F16-PF16 9SS16-F16-F16
9SS20-PF20-O20 9SS20-F20-J20 9SS20-F20-PF20 9SS20-F20-F20
9SS24-PF24-O24 9SS24-F24-J24 9SS24-F24-PF24 9SS24-F24-F24

NPTF x ORFS ORFS x NPTF ORFS x SAE
90° Dual Plane Swivel 90° Dual Plane Swivel 90° Dual Plane Swivel

NPTF Female Pipe
O-Ring Face Seal Male O-Ring Face Seal Male O-Ring Face Seal Male
NPTF Male Pipe SAE Straight Thread O-Ring
9SS6-PF4-F6
9SS6-PF6-F8 9SS6-F6-P4 9SS6-F6-O8
9SS8-PF8-F10 9SS6-F8-P6 9SS6-F8-O8
9SS12-PF12-F12 9SS8-F10-P8 9SS8-F10-O10
9SS16-PF16-F16 9SS12-F12-P12 9SS12-F12-O12
9SS20-PF20-F20 9SS16-F16-P16 9SS16-F16-O16
9SS24-PF24-F24 9SS20-F20-P20 9SS20-F20-O20
9SS24-F24-P24 9SS24-F24-O24

Fluid conducting swivel joints
are intended for fl uid transfer
only. Maximum working
pressure: 3,000 psi
