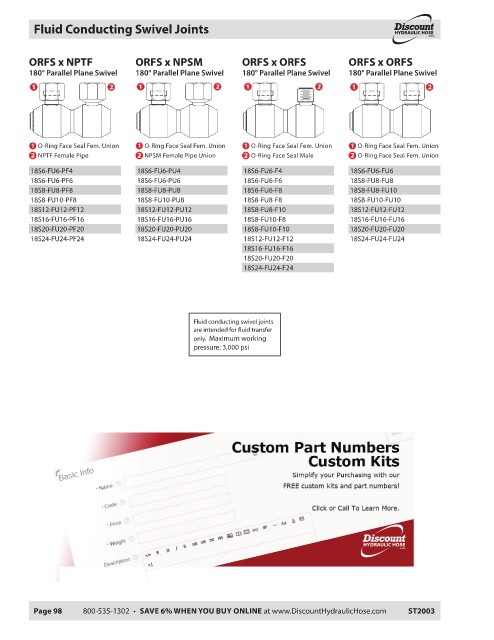

Fluid Conducting Swivel Joints HYDRAULIC HOSE
.com ®
ORFS x NPTF ORFS x NPSM ORFS x ORFS ORFS x ORFS
180° Parallel Plane Swivel 180° Parallel Plane Swivel 180° Parallel Plane Swivel 180° Parallel Plane Swivel
O-Ring Face Seal Fem. Union O-Ring Face Seal Fem. Union O-Ring Face Seal Fem. Union O-Ring Face Seal Fem. Union
NPTF Female Pipe NPSM Female Pipe Union O-Ring Face Seal Male O-Ring Face Seal Fem. Union
18S6-FU6-PF4 18S6-FU6-PU4 18S6-FU6-F4 18S6-FU6-FU6
18S6-FU6-PF6 18S6-FU6-PU6 18S6-FU6-F6 18S8-FU8-FU8
18S8-FU8-PF8 18S8-FU8-PU8 18S6-FU6-F8 18S8-FU8-FU10
18S8-FU10-PF8 18S8-FU10-PU8 18S8-FU8-F8 18S8-FU10-FU10
18S12-FU12-PF12 18S12-FU12-PU12 18S8-FU8-F10 18S12-FU12-FU12
18S16-FU16-PF16 18S16-FU16-PU16 18S8-FU10-F8 18S16-FU16-FU16
18S20-FU20-PF20 18S20-FU20-PU20 18S8-FU10-F10 18S20-FU20-FU20
18S24-FU24-PF24 18S24-FU24-PU24 18S12-FU12-F12 18S24-FU24-FU24
18S16-FU16-F16
18S20-FU20-F20
18S24-FU24-F24
Fluid conducting swivel joints
are intended for fl uid transfer
only. Maximum working
pressure: 3,000 psi
