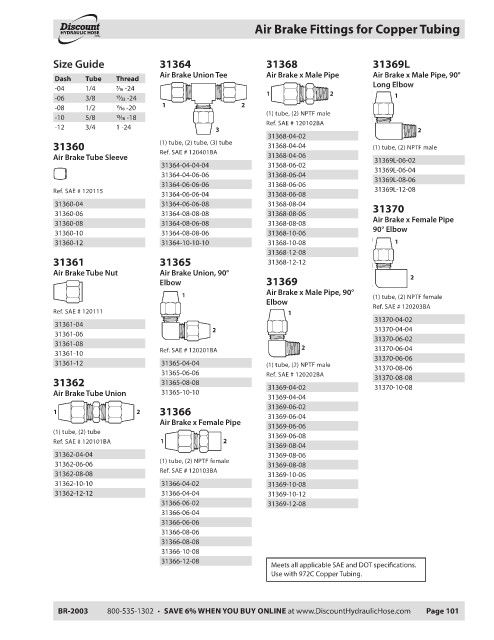

Page 103 - DHH Catalog

Air Brake Fittings for Copper Tubing
HYDRAULIC HOSE
.com ®

Size Guide 31364 31368 31369L
Air Brake Union Tee Air Brake x Male Pipe Air Brake x Male Pipe, 90°
Dash Tube Thread
Long Elbow
-04 1/4 7⁄16 -24
-06 3/8 17⁄32 -24
-08 1/2 11⁄16 -20
(1) tube, (2) NPTF male
-10 5/8 13⁄16 -18
Ref. SAE # 120102BA
-12 3/4 1 -24
31368-04-02
(1) tube, (2) tube, (3) tube
31360 31368-04-04 (1) tube, (2) NPTF male
Ref. SAE # 120401BA
Air Brake Tube Sleeve 31368-04-06 31369L-06-02
31364-04-04-04 31368-06-02
31369L-06-04
31364-04-06-06 31368-06-04
31369L-08-06
31364-06-06-06 31368-06-06
Ref. SAE # 120115 31369L-12-08
31364-06-06-04 31368-06-08
31360-04 31364-06-06-08 31368-08-04
31370
31360-06 31364-08-08-08 31368-08-06
Air Brake x Female Pipe
31360-08 31364-08-06-08 31368-08-08
90° Elbow
31360-10 31364-08-08-06 31368-10-06
31360-12 31364-10-10-10 31368-10-08
31368-12-08
31361 31365 31368-12-12
Air Brake Tube Nut Air Brake Union, 90°
Elbow 31369
Air Brake x Male Pipe, 90°
(1) tube, (2) NPTF female
Elbow
Ref. SAE # 120203BA
Ref. SAE # 120111
31370-04-02
31361-04
31370-04-04
31361-06
31370-06-02
31361-08
Ref. SAE # 120201BA 31370-06-04
31361-10
31370-06-06
31361-12 31365-04-04 (1) tube, (2) NPTF male 31370-08-06
31365-06-06 Ref. SAE # 120202BA 31370-08-08
31362 31365-08-08 31369-04-02 31370-10-08
Air Brake Tube Union 31365-10-10
31369-04-04
31369-06-02
31366
31369-06-04
Air Brake x Female Pipe
31369-06-06
(1) tube, (2) tube
31369-06-08
Ref. SAE # 120101BA
31369-08-04
31362-04-04 31369-08-06
(1) tube, (2) NPTF female
31362-06-06 31369-08-08
Ref. SAE # 120103BA
31362-08-08 31369-10-06
31362-10-10 31366-04-02 31369-10-08
31362-12-12 31366-04-04 31369-10-12
31366-06-02 31369-12-08
31366-06-04
31366-06-06
31366-08-06
31366-08-08
31366-10-08
31366-12-08
Meets all applicable SAE and DOT specifi cations.
Use with 972C Copper Tubing.

BR-2003 800-535-1302 • SAVE 6% WHEN YOU BUY ONLINE at www.DiscountHydraulicHose.com Page 101
