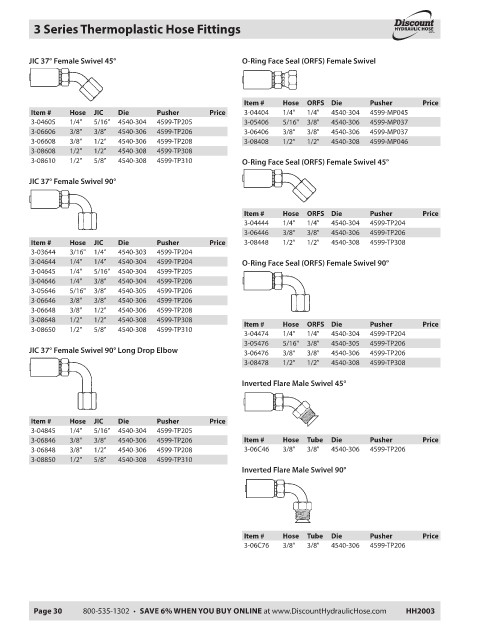

Page 32 - DHH Catalog

3 Series Thermoplastic Hose Fittings HYDRAULIC HOSE
.com ®

JIC 37° Female Swivel 45° O-Ring Face Seal (ORFS) Female Swivel

Item # Hose ORFS Die Pusher Price
Item # Hose JIC Die Pusher Price 3-04404 1/4" 1/4" 4540-304 4599-MP045
3-04605 1/4" 5/16" 4540-304 4599-TP205 3-05406 5/16" 3/8" 4540-306 4599-MP037
3-06606 3/8" 3/8" 4540-306 4599-TP206 3-06406 3/8" 3/8" 4540-306 4599-MP037
3-06608 3/8" 1/2" 4540-306 4599-TP208 3-08408 1/2" 1/2" 4540-308 4599-MP046
3-08608 1/2" 1/2" 4540-308 4599-TP308
3-08610 1/2" 5/8" 4540-308 4599-TP310 O-Ring Face Seal (ORFS) Female Swivel 45°

JIC 37° Female Swivel 90°

Item # Hose ORFS Die Pusher Price
3-04444 1/4" 1/4" 4540-304 4599-TP204
3-06446 3/8" 3/8" 4540-306 4599-TP206
Item # Hose JIC Die Pusher Price 3-08448 1/2" 1/2" 4540-308 4599-TP308
3-03644 3/16" 1/4" 4540-303 4599-TP204
3-04644 1/4" 1/4" 4540-304 4599-TP204 O-Ring Face Seal (ORFS) Female Swivel 90°
3-04645 1/4" 5/16" 4540-304 4599-TP205
3-04646 1/4" 3/8" 4540-304 4599-TP206
3-05646 5/16" 3/8" 4540-305 4599-TP206
3-06646 3/8" 3/8" 4540-306 4599-TP206
3-06648 3/8" 1/2" 4540-306 4599-TP208
3-08648 1/2" 1/2" 4540-308 4599-TP308
Item # Hose ORFS Die Pusher Price
3-08650 1/2" 5/8" 4540-308 4599-TP310
3-04474 1/4" 1/4" 4540-304 4599-TP204
3-05476 5/16" 3/8" 4540-305 4599-TP206
JIC 37° Female Swivel 90° Long Drop Elbow 3-06476 3/8" 3/8" 4540-306 4599-TP206
3-08478 1/2" 1/2" 4540-308 4599-TP308

Inverted Flare Male Swivel 45°

Item # Hose JIC Die Pusher Price
3-04845 1/4" 5/16" 4540-304 4599-TP205
3-06846 3/8" 3/8" 4540-306 4599-TP206 Item # Hose Tube Die Pusher Price
3-06848 3/8" 1/2" 4540-306 4599-TP208 3-06C46 3/8" 3/8" 4540-306 4599-TP206
3-08850 1/2" 5/8" 4540-308 4599-TP310
Inverted Flare Male Swivel 90°

Item # Hose Tube Die Pusher Price
3-06C76 3/8" 3/8" 4540-306 4599-TP206

Page 30 800-535-1302 • SAVE 6% WHEN YOU BUY ONLINE at www.DiscountHydraulicHose.com HH2003
