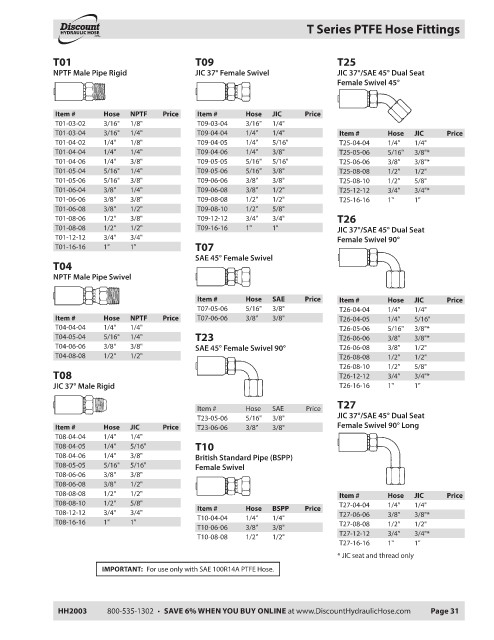

Page 33 - DHH Catalog

T Series PTFE Hose Fittings
HYDRAULIC HOSE
.com ®

T01 T09 T25
NPTF Male Pipe Rigid JIC 37° Female Swivel JIC 37°/SAE 45° Dual Seat
Female Swivel 45°

Item # Hose NPTF Price Item # Hose JIC Price
T01-03-02 3/16" 1/8" T09-03-04 3/16" 1/4"
T01-03-04 3/16" 1/4" T09-04-04 1/4" 1/4" Item # Hose JIC Price
T01-04-02 1/4" 1/8" T09-04-05 1/4" 5/16" T25-04-04 1/4" 1/4"
T01-04-04 1/4" 1/4" T09-04-06 1/4" 3/8" T25-05-06 5/16" 3/8"*
T01-04-06 1/4" 3/8" T09-05-05 5/16" 5/16" T25-06-06 3/8" 3/8"*
T01-05-04 5/16" 1/4" T09-05-06 5/16" 3/8" T25-08-08 1/2" 1/2"
T01-05-06 5/16" 3/8" T09-06-06 3/8" 3/8" T25-08-10 1/2" 5/8"
T01-06-04 3/8" 1/4" T09-06-08 3/8" 1/2" T25-12-12 3/4" 3/4"*
T01-06-06 3/8" 3/8" T09-08-08 1/2" 1/2" T25-16-16 1" 1"
T01-06-08 3/8" 1/2" T09-08-10 1/2" 5/8"
T01-08-06 1/2" 3/8" T09-12-12 3/4" 3/4" T26
T01-08-08 1/2" 1/2" T09-16-16 1" 1" JIC 37°/SAE 45° Dual Seat
T01-12-12 3/4" 3/4" Female Swivel 90°
T01-16-16 1" 1" T07
SAE 45° Female Swivel
T04
NPTF Male Pipe Swivel

Item # Hose SAE Price Item # Hose JIC Price
T07-05-06 5/16" 3/8" T26-04-04 1/4" 1/4"
Item # Hose NPTF Price T07-06-06 3/8" 3/8" T26-04-05 1/4" 5/16"
T04-04-04 1/4" 1/4" T26-05-06 5/16" 3/8"*
T04-05-04 5/16" 1/4" T23 T26-06-06 3/8" 3/8"*
T04-06-06 3/8" 3/8" SAE 45° Female Swivel 90° T26-06-08 3/8" 1/2"
T04-08-08 1/2" 1/2" T26-08-08 1/2" 1/2"
T26-08-10 1/2" 5/8"
T08 T26-12-12 3/4" 3/4"*
JIC 37° Male Rigid T26-16-16 1" 1"

Item # Hose SAE Price T27
T23-05-06 5/16" 3/8" JIC 37°/SAE 45° Dual Seat
Item # Hose JIC Price T23-06-06 3/8" 3/8" Female Swivel 90° Long
T08-04-04 1/4" 1/4"
T08-04-05 1/4" 5/16" T10
T08-04-06 1/4" 3/8" British Standard Pipe (BSPP)
T08-05-05 5/16" 5/16" Female Swivel
T08-06-06 3/8" 3/8"
T08-06-08 3/8" 1/2"
T08-08-08 1/2" 1/2" Item # Hose JIC Price
T08-08-10 1/2" 5/8" T27-04-04 1/4" 1/4"
Item # Hose BSPP Price
T08-12-12 3/4" 3/4" T27-06-06 3/8" 3/8"*
T10-04-04 1/4" 1/4"
T08-16-16 1" 1" T27-08-08 1/2" 1/2"
T10-06-06 3/8" 3/8"
T27-12-12 3/4" 3/4"*
T10-08-08 1/2" 1/2"
T27-16-16 1" 1"
* JIC seat and thread only
IMPORTANT: For use only with SAE 100R14A PTFE Hose.

HH2003 800-535-1302 • SAVE 6% WHEN YOU BUY ONLINE at www.DiscountHydraulicHose.com Page 31
