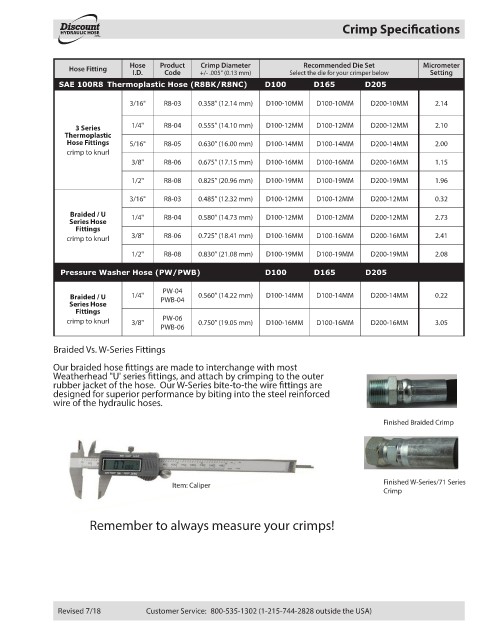

Crimp Specifi cations
HYDRAULIC HOSE
.com ®

Hose Product Crimp Diameter Recommended Die Set Micrometer
Hose Fitting
I.D. Code +/- .005" (0.13 mm) Select the die for your crimper below Setting
SAE 100R8 Thermoplastic Hose (R8BK/R8NC) D100 D165 D205

3/16" R8-03 0.358" (12.14 mm) D100-10MM D100-10MM D200-10MM 2.14

3 Series 1/4" R8-04 0.555" (14.10 mm) D100-12MM D100-12MM D200-12MM 2.10
Thermoplastic
Hose Fittings 5/16" R8-05 0.630" (16.00 mm) D100-14MM D100-14MM D200-14MM 2.00
crimp to knurl
3/8" R8-06 0.675" (17.15 mm) D100-16MM D100-16MM D200-16MM 1.15

1/2" R8-08 0.825" (20.96 mm) D100-19MM D100-19MM D200-19MM 1.96
3/16" R8-03 0.485" (12.32 mm) D100-12MM D100-12MM D200-12MM 0.32

Braided / U 1/4" R8-04 0.580" (14.73 mm) D100-12MM D100-12MM D200-12MM 2.73
Series Hose
Fittings
3/8" R8-06 0.725" (18.41 mm) D100-16MM D100-16MM D200-16MM 2.41
crimp to knurl
1/2" R8-08 0.830" (21.08 mm) D100-19MM D100-19MM D200-19MM 2.08
Pressure Washer Hose (PW/PWB) D100 D165 D205

PW-04
Braided / U 1/4" PWB-04 0.560" (14.22 mm) D100-14MM D100-14MM D200-14MM 0.22
Series Hose
Fittings
PW-06
crimp to knurl 3/8" 0.750" (19.05 mm) D100-16MM D100-16MM D200-16MM 3.05
PWB-06

Braided Vs. W-Series Fittings
Our braided hose fi ttings are made to interchange with most
Weatherhead "U' series fi ttings, and attach by crimping to the outer
rubber jacket of the hose. Our W-Series bite-to-the wire fi ttings are
designed for superior performance by biting into the steel reinforced
wire of the hydraulic hoses.

Finished Braided Crimp

Finished W-Series/71 Series
Item: Caliper
Crimp

Remember to always measure your crimps!

Revised 7/18 Customer Service: 800-535-1302 (1-215-744-2828 outside the USA)
