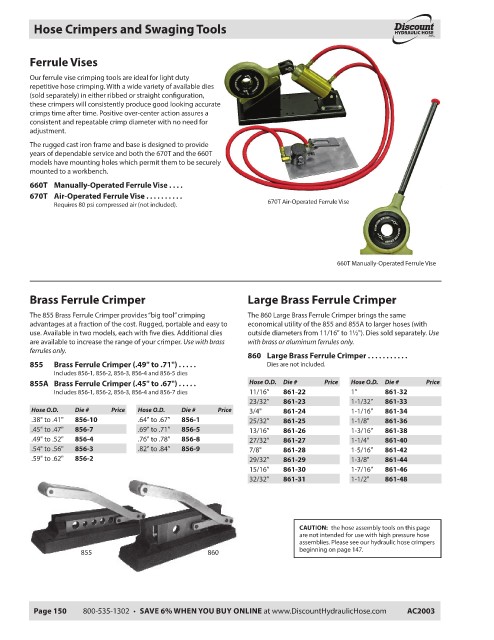

Hose Crimpers and Swaging Tools HYDRAULIC HOSE
.com ®

Ferrule Vises

Our ferrule vise crimping tools are ideal for light duty
repetitive hose crimping. With a wide variety of available dies
(sold separately) in either ribbed or straight confi guration,
these crimpers will consistently produce good looking accurate
crimps time after time. Positive over-center action assures a
consistent and repeatable crimp diameter with no need for
adjustment.
The rugged cast iron frame and base is designed to provide
years of dependable service and both the 670T and the 660T
models have mounting holes which permit them to be securely
mounted to a workbench.
660T Manually-Operated Ferrule Vise . . . .
670T Air-Operated Ferrule Vise . . . . . . . . . .
Requires 80 psi compressed air (not included). 670T Air-Operated Ferrule Vise

660T Manually-Operated Ferrule Vise

Brass Ferrule Crimper Large Brass Ferrule Crimper
The 855 Brass Ferrule Crimper provides “big tool” crimping The 860 Large Brass Ferrule Crimper brings the same
advantages at a fraction of the cost. Rugged, portable and easy to economical utility of the 855 and 855A to larger hoses (with
use. Available in two models, each with fi ve dies. Additional dies outside diameters from 11/16" to 1½"). Dies sold separately. Use
are available to increase the range of your crimper. Use with brass with brass or aluminum ferrules only.
ferrules only.
860 Large Brass Ferrule Crimper . . . . . . . . . . .
855 Brass Ferrule Crimper (.49" to .71") . . . . . Dies are not included.
Includes 856-1, 856-2, 856-3, 856-4 and 856-5 dies
855A Brass Ferrule Crimper (.45" to .67") . . . . . Hose O.D. Die # Price Hose O.D. Die # Price
Includes 856-1, 856-2, 856-3, 856-4 and 856-7 dies 11/16" 861-22 1" 861-32
23/32" 861-23 1-1/32" 861-33
Hose O.D. Die # Price Hose O.D. Die # Price 3/4" 861-24 1-1/16" 861-34
.38" to .41" 856-10 .64" to .67" 856-1 25/32" 861-25 1-1/8" 861-36
.45" to .47" 856-7 .69" to .71" 856-5 13/16" 861-26 1-3/16" 861-38
.49" to .52" 856-4 .76" to .78" 856-8 27/32" 861-27 1-1/4" 861-40
.54" to .56" 856-3 .82" to .84" 856-9 7/8" 861-28 1-5/16" 861-42
.59" to .62" 856-2 29/32" 861-29 1-3/8" 861-44
15/16" 861-30 1-7/16" 861-46
32/32" 861-31 1-1/2" 861-48

CAUTION: the hose assembly tools on this page
are not intended for use with high pressure hose
assemblies. Please see our hydraulic hose crimpers
855 860 beginning on page 147.
