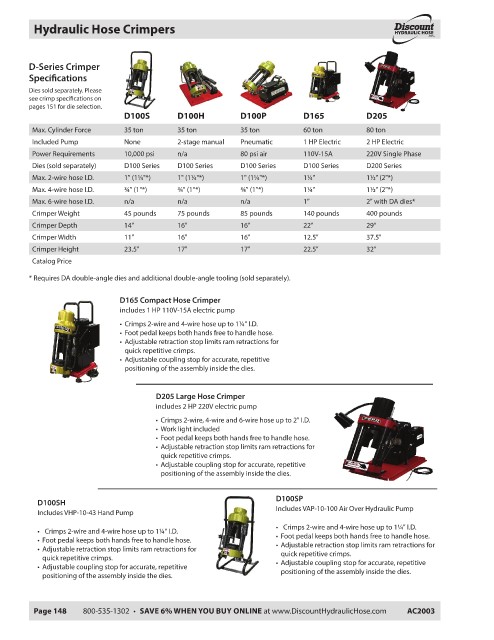

Hydraulic Hose Crimpers HYDRAULIC HOSE
.com ®

D-Series Crimper
Specifi cations
Dies sold separately. Please
see crimp specifi cations on
pages 151 for die selection.
D100S D100H D100P D165 D205

Max. Cylinder Force 35 ton 35 ton 35 ton 60 ton 80 ton
Included Pump None 2-stage manual Pneumatic 1 HP Electric 2 HP Electric
Power Requirements 10,000 psi n/a 80 psi air 110V-15A 220V Single Phase
Dies (sold separately) D100 Series D100 Series D100 Series D100 Series D200 Series
Max. 2-wire hose I.D. 1" (1¼"*) 1" (1¼"*) 1" (1¼"*) 1¼" 1½" (2"*)
Max. 4-wire hose I.D. ¾" (1"*) ¾" (1"*) ¾" (1"*) 1¼" 1½" (2"*)
Max. 6-wire hose I.D. n/a n/a n/a 1" 2" with DA dies*
Crimper Weight 45 pounds 75 pounds 85 pounds 140 pounds 400 pounds
Crimper Depth 14" 16" 16" 22" 29"
Crimper Width 11" 16" 16" 12.5" 37.5"
Crimper Height 23.5" 17" 17" 22.5" 32"
Catalog Price

* Requires DA double-angle dies and additional double-angle tooling (sold separately).

D165 Compact Hose Crimper
includes 1 HP 110V-15A electric pump
• Crimps 2-wire and 4-wire hose up to 1¼" I.D.
• Foot pedal keeps both hands free to handle hose.
• Adjustable retraction stop limits ram retractions for
quick repetitive crimps.
• Adjustable coupling stop for accurate, repetitive
positioning of the assembly inside the dies.

D205 Large Hose Crimper
includes 2 HP 220V electric pump
• Crimps 2-wire, 4-wire and 6-wire hose up to 2" I.D.
• Work light included
• Foot pedal keeps both hands free to handle hose.
• Adjustable retraction stop limits ram retractions for
quick repetitive crimps.
• Adjustable coupling stop for accurate, repetitive
positioning of the assembly inside the dies.

D100SP
D100SH
Includes VAP-10-100 Air Over Hydraulic Pump
Includes VHP-10-43 Hand Pump
• Crimps 2-wire and 4-wire hose up to 1¼" I.D.
• Crimps 2-wire and 4-wire hose up to 1¼" I.D.
• Foot pedal keeps both hands free to handle hose.
• Foot pedal keeps both hands free to handle hose.
• Adjustable retraction stop limits ram retractions for
• Adjustable retraction stop limits ram retractions for
quick repetitive crimps.
quick repetitive crimps.
• Adjustable coupling stop for accurate, repetitive
• Adjustable coupling stop for accurate, repetitive
positioning of the assembly inside the dies.
positioning of the assembly inside the dies.
Page 148 800-535-1302 • SAVE 6% WHEN YOU BUY ONLINE at www.DiscountHydraulicHose.com AC2003
